The calibration board VAS 6430/4 is required as an extension for the setting device VAS 6430/1 for calibration of the image sensor for the lane guard system.
The lane guard system warns the driver by vibrating the steering wheel if the vehicle leaves its lane unintentionally.
The setting device VAS 6430/1 with the adapted calibration board 6430/4 is aligned by the geometrical driving axis with the wheel alignment systems approved by Volkswagen AG.
In the step the sensors can be learnt.
Items supplied:

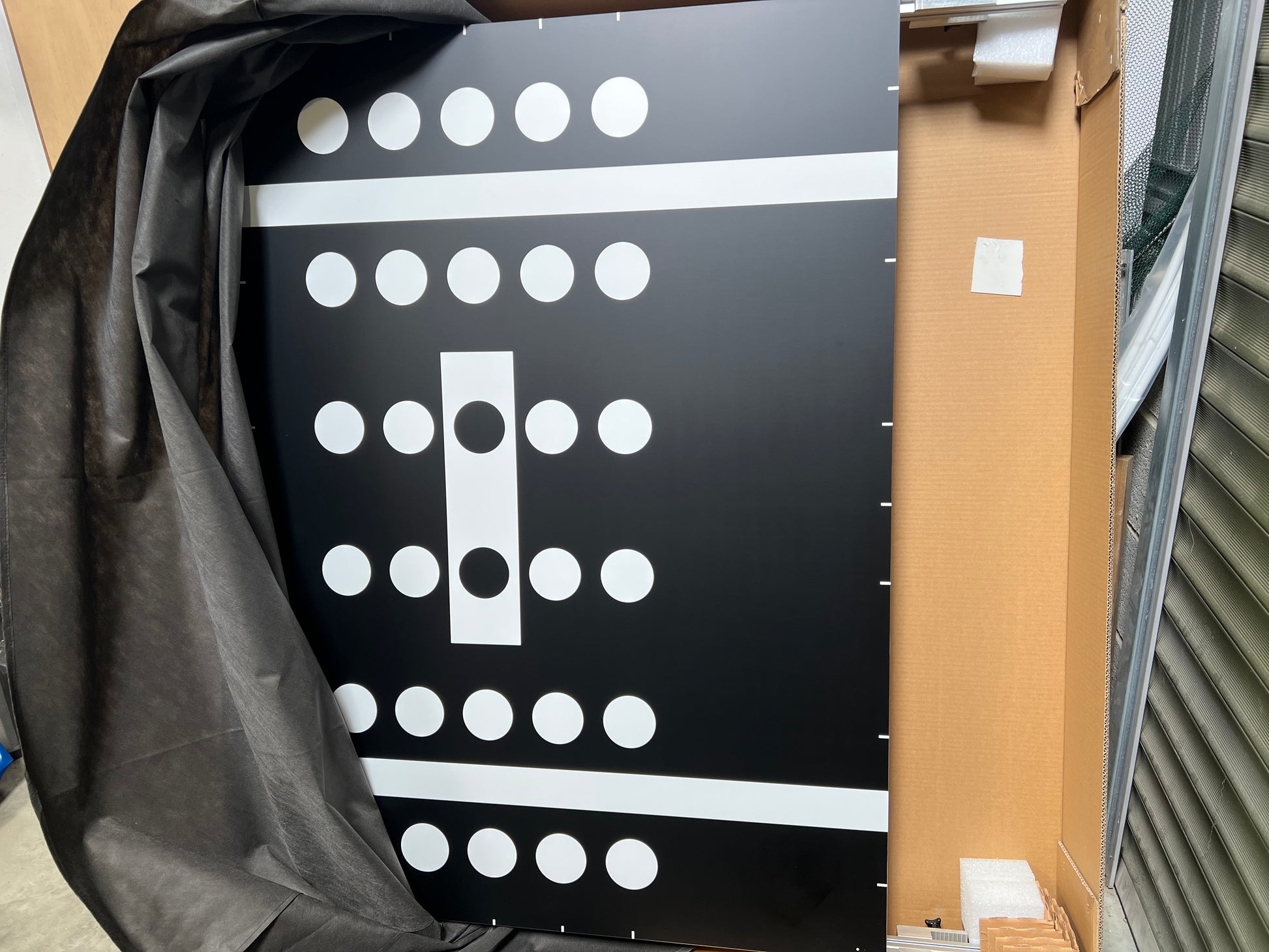

Calibration board, including frame and precision slats.

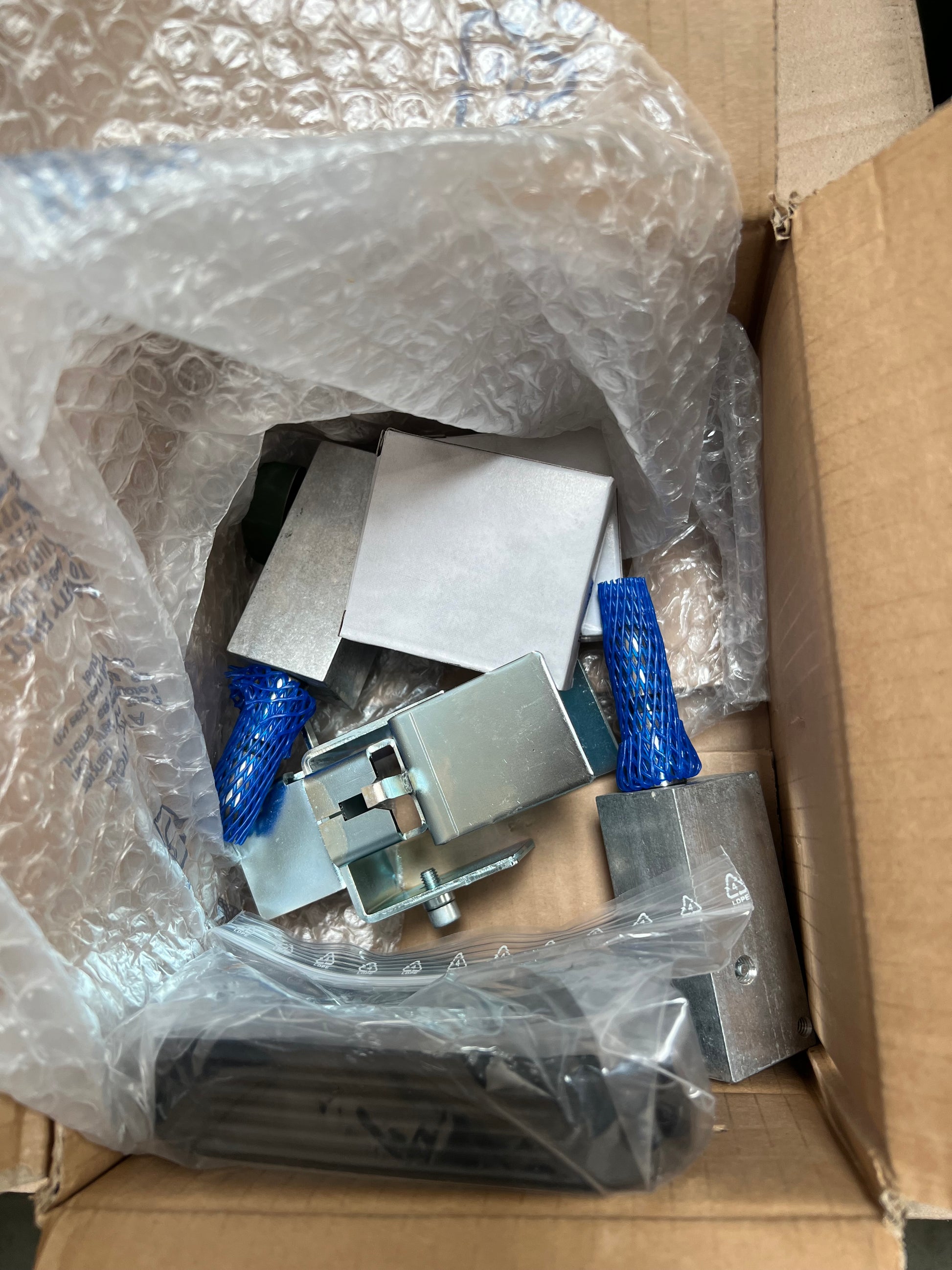

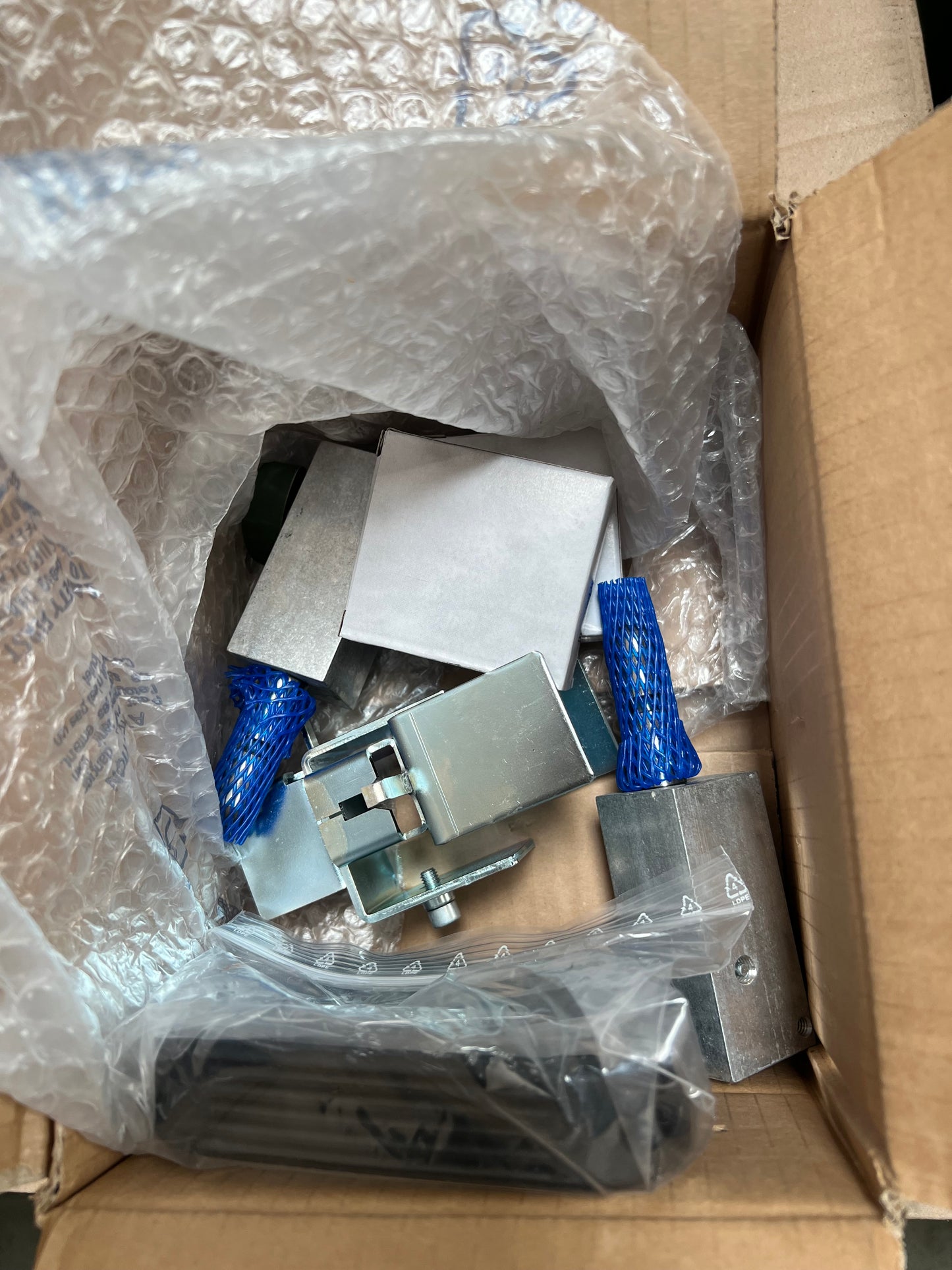

Gap measuring unit with tape measure tape and pins.
